Name: 305m Length HDMI AOC Cable RG592c Coaxial Video Power Cable For CCTV Camera
Brand: HICORPWELL
Price: 1 USD

Brand Name : HICORPWELL

Model Number : CCTV RG59 Video and 2C 18AWG Power Siamese Coaxial Cable

Certification : IEC 60794-2-10/11

Place of Origin : China

MOQ : 305M

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 5000KM per Month

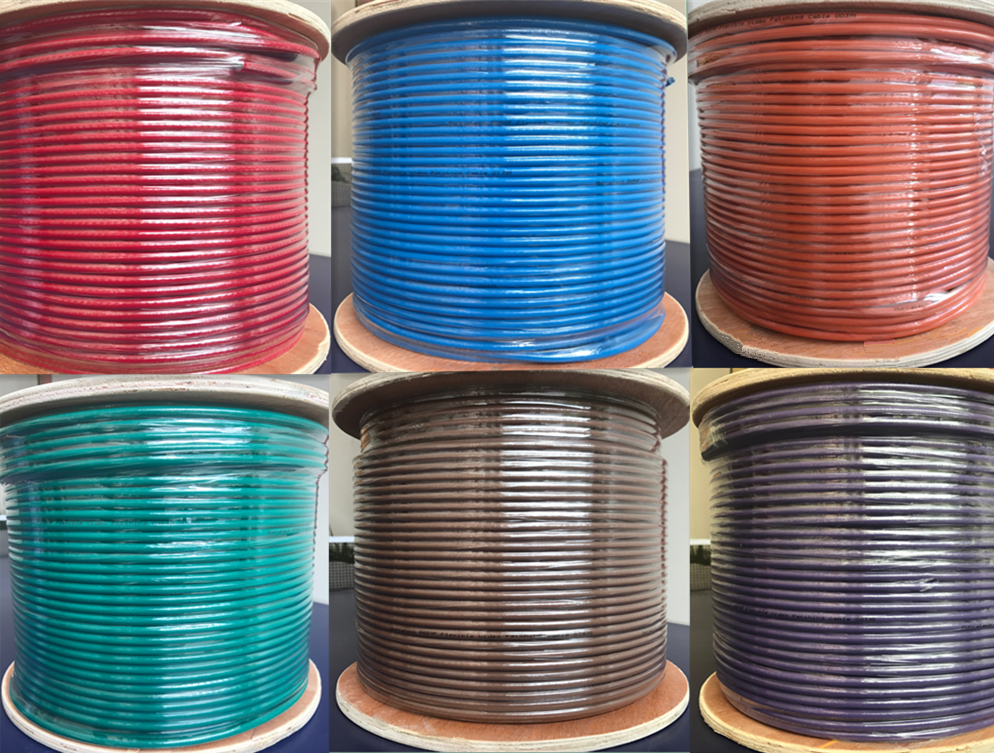

Packaging Details : Inner packing:Wooden reel,Plastic reel,Paper reel Ourter pakcing:Carton box,Pull outbox,Palleta available.

Name : CCTV Camera Cable

Braided density : 95%=8X16X0.12mm CCA for Video cable

Jacket Material : Black or White, 4.4mm for Power cable

Power : 18AWG, 2*7X0.37mm CCA, red and black, PE/1.7mm

Length : 1000feet=305m

Application : HD-TVI/CVI/AHD/CVBS Security Cameras

Product Description : Siamese Cable/1000ft: (RG59+2C, 18AWG)

Keyword : CCTV RG59 Video and 2C 18AWG Power Siamese Coaxial Cable

Contact Now

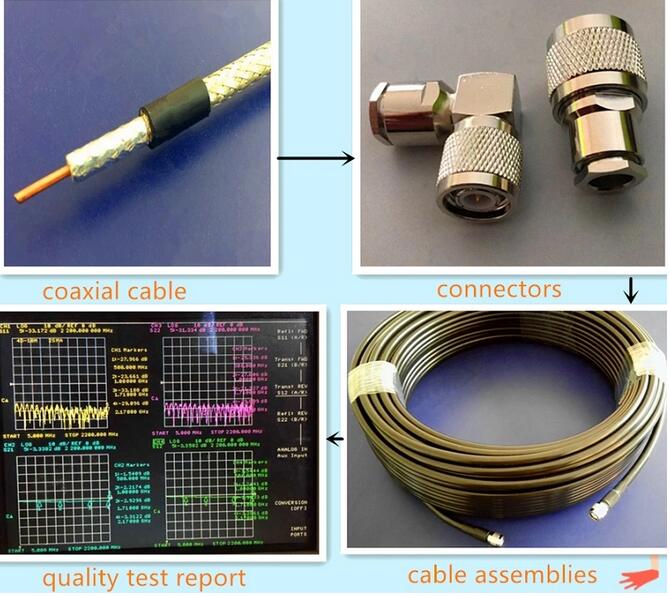

RG59+2c Coaxial Video Power Cable for CCTV Camera HDMI AOC Cable

tem	RG59 with power elevator cable
Category	elevator cable
Structure	Type	RG59
	Conductor	BC
	Pair	Multi-pair
	Solid/Stranded	Stranded
Insulation	Material	White Foam PE
Power cable	Size	2*1mm
Inner Jacket	Material	PVC
Outer Jacket	Material	PE
Steel Rope	Diameter	2190.2mm
Color	Black
Size	customized
Reference Standard	UL444, ANSI/ TIA/ EIA 568B & ISO/ IEC11801 Stanard
Rated Temperature	-20°to +75°
Supports Transmission	Digital and analogue voice, data and video signal
Application	Elevator power cable

Component	Standard-shield		Tri-shield		Quad-shield
Component	inches	mm	inches	mm	inches	mm
Nominal center conductor diameter	0.032	0.81	0.032	0.81	0.032	0.81
Nominal diameter over dielectric	0.144	3.66	0.144	3.66	0.144	3.66
Nominal diameter over first shield	0.151	3.84	0.151	3.84	0.151	3.84
Nominal diameter over jacket	0.24	6.1	0.24	6.1	0.265	6.73
Nominal jacket wall thickness	0.03	0.76	0.032	0.81	0.034	0.86
Nominal diameter of steel messenger	0.051(single)	1.3	0.051(single)	1.3	0.051(single)	1.3
Nominal diameter of steel messenger	0.072(dual)	1.83	0.072(dual)	1.83	0.072(dual)	1.83
