All Dielectric Self Supporting Fiber Cable ADSS 2-144 B1.3 800M Aerial Optical Cable

Shenzhen Hicorpwell Technology Co., Ltd
Contact Now

All Dielectric Self Supporting Fiber Cable ADSS 2-144 B1.3 800M Aerial Optical Cable

Brand Name : HICORPWELL

Model Number : ADSS 2-144 B1.3 800M

Certification : IEC 60794-2-10/11

Place of Origin : China

MOQ : 1KM

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 1000KM Per Week

Packaging Details : 2-4km/Reel Packaging Details: wooden drum or as per customer's request Delivery Detail: 5-15days

Fibers Qty : up to 144 fibers

Length : 2KM To 4KM Per Reel.

Application : low-voltage power and high-speed communications

Outer Jacket : PE , MDPE , AT

Fiber type : single mode / multi mode

Voltage : Under 110kv

Fiber excess length : 0.5-0.7‰

Contact Now

All-Dielectric Self-Supporting Fiber Cable ADSS 2-144 B1.3 800M Aerial Optical Fiber Cable

Aerial optical cables along electrical power lines-Family specification for ADSS(All Dielectric Self Supported) Optical cables.

This specification is applicable to high voltage transmission system, also applies to long-span erection of ADSS cable communication

lines in high-elevation thunderstrom area.



This standard stipulates ADSS cable product classifications, type, model, structure, cable fiber technical parameters andtext method,

and the requirements of packing and storage. This specification covers the classification,type,construction,technical parameter,packaging and storage requirements.



Description



This product has excellent mechanical stability and environmental performance; there is no metallic material in the ADSS cable,

it has excellentperformances such as resistance to lightning stroke and electromagnetic interference.

This ADSS cable is light weight, high tensile strength and lng-span erection crossing the river and canyons.

Fiber optic technology requirements,No Items Test Requirement Test Standard



Cable Specifiation :



Core non-circularity   6%
 Cladding diameter  125.0±0.7μm
 Core/Cladding concentricity error   0.6μm
 Cladding non-circularity   1.0%
 Coating diameter  245±10μm
 Cladding/Coating concentricity error   12μm
Attenuation coefficient 1310nm≤0.35dB/km
Attenuation coefficient 1550nm≤0.21dB/km
ITU-T G.652
 Zero dispersion slope   0.092ps/(nm2·km)
 Zero dispersion wavelength  1300~1324nm
 Polarization dispersion   0.20 ps/√km
Mode field diameter 1310nm: 9.0±0.4μm
cut-off wavelength  1170~1330nm
1288~1339nm ≤3.4ps(nm·km)
 Chromatic dispersion coefficient  1550nm≤18 ps/(nm·km)
1625nm

≤22 ps/(nm·km)

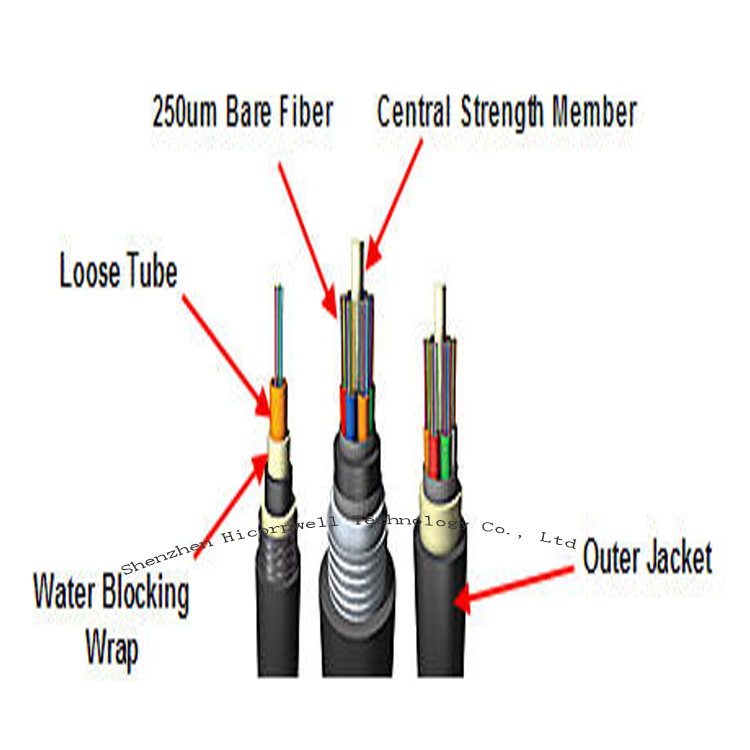

All Dielectric Self Supporting Fiber Cable ADSS 2-144 B1.3 800M Aerial Optical Cable

All Dielectric Self Supporting Fiber Cable ADSS 2-144 B1.3 800M Aerial Optical Cable
