ADSS Glass Fiber Optic Cable G652D 11.6-17.5mm Dia B1.3 1KM 2-144C

Product Categories
Shenzhen Hicorpwell Technology Co., Ltd
Contact Now

ADSS Glass Fiber Optic Cable G652D 11.6-17.5mm Dia B1.3 1KM 2-144C

Brand Name : HICORPWELL

Model Number : Fiber Cable ADSS 2-144 C B1.3 800M

Certification : IEC 60794-2-10/11

Place of Origin : China

MOQ : 1KM

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 1000KM Per Week

Packaging Details : 2-4km/Reel Packaging Details: wooden drum or as per customer's request Delivery Detail: 5-15days

Cable Diameter : 11.6-17.5mm

Length : 2KM To 4KM Per Reel.

Weight : 108-235kg/km

Outer Jacket : PE , MDPE , AT

Fiber type : single mode

Voltage : Under 110kv

Temperature : -40℃~+60℃

Contact Now

ADSS Glass Fiber Optic Cable G652D 11.6-17.5mm Dia B1.3 1KM price outdoor Types 2-144C ADSS Cable

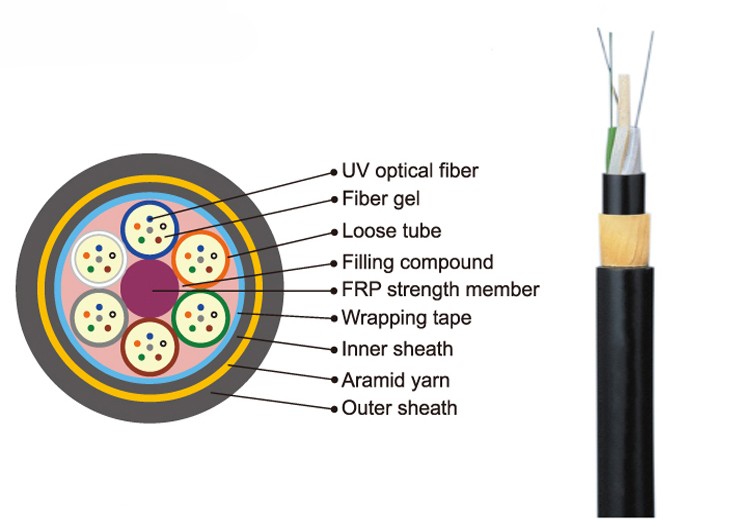

ADSS cable is loose tube stranded. Fibers, 250um, are positioned into a loose tube made of high modulus plastics.
The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.


After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.


Jacket:
PE
Color:
Black or Customized
Structure:
Stande loose tube
Fiber Count:
2-144 Cores
Fiber Type:
Single Mode/Multi/G652D/G657A1/A2
CSM:
FRP
Strength Member:
Kevar/Armi Yarn
Application:
Outdoor Aerial Cabling System
Installation:
Power Transmission Line
Product Name:
ADSS Aerial Standed Self Supporting Power Transmisson Line Cable

ADSS CABLE Characteristics



1. Two jacket and stranded loose tube design.
2. Stable performance and compatibility with all common fiber typesCan be installed without shutting off the power, mainly installed at existing 220kv or lower voltage power lines.
3. Excellent AT performance.The maximum inductive at the operating point of AT sheath can reach 25 KV.
4. Aramid yarn strength member ensure tensile strength,good performance and temperature.
5. Crush resistance and flexibility.
6. PSP enhancing moisture-proof.
7. Small diameter,light weight and friendly installation.
8. Long span lenths and the largest span is over 1000m.
Ref. Outer Dia.(mm)
Ref. Weight (kg/km)
Daily max. working tension (kN)
MAT
(kN)
Break strength
(kN)
Strength member
CAS
(mm2)
Modulus of elasticity
(kN/mm2)
Heat expansion coefficient
(x10-6/K)
PE sheath
AT sheath
11.8
117
124
1.5
4
10
4.6
7.6
1.8
12.0
121
129
2.25
6
15
7.6
8.3
1.5
12.3
126
134
3.0
8
20
10.35
7.45
1.3
12.6
133
141
3.6
10
24
13.8
10.8
1.2
12.8
138
145
4.5
12
30
14.3
11.8
1.0
13.1
145
153
5.4
15
36
18.4
13.6
0.9
13.5
155
163
6.75
18
45
22.0
16.4
0.6
13.8
163
171
7.95
22
53
26.4
18.0
0.3
14.4
177
186
9.0
26
60
32.2
19.1
0.1
14.6
182
181
10.5
28
70
33.0
19.6
0.1
14.8
195
204
12.75
34
85
40.0
20.1
0.4



ADSS Glass Fiber Optic Cable G652D 11.6-17.5mm Dia B1.3 1KM 2-144C



Ideal Solution by Using ADSS Cable

ADSS Glass Fiber Optic Cable G652D 11.6-17.5mm Dia B1.3 1KM 2-144C
