Cat5e Cat6 Cat6a Cat7 HDPE Indoor Outdoor Ethernet LAN Cable Network Ethernet Lan Cable

Shenzhen Hicorpwell Technology Co., Ltd
Contact Now

Cat5e Cat6 Cat6a Cat7 HDPE Indoor Outdoor Ethernet LAN Cable Network Ethernet Lan Cable

Brand Name : HICORPWELL

Model Number : Cat5e Cat6 Cat6a Cat7 Lan Cable

Certification : IEC 60794-2-10/11

Place of Origin : China

MOQ : 30 roll

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 500 Rolls Per Week

Packaging Details : 305 meters each roll

Cable Type : Network Ethernet Lan Cable

Paintcoat Color : Black or Orange or others

MOQ : 30 roll

Roll Length : 305 m

Material : CCA,BC Copper

Insulation material : PE , HDPE

Insulation diameter : 0.9±0.02mm

Jacket material : PVC, ROHS PVC, LSZH PVC

Contact Now

Cat5e Cat6 Cat6a Cat7 HDPE Indoor Outdoor Ethernet LAN Cable Network Ethernet Lan Cable





Specification




Inner conductor: 0.58mm solid OFC
GAUGE: 23AWGPairs: 4
Insulation: 1.02mm color-coded HDPE
Rip cord: YES
Sheath: 6.5mm PVC/PE/LSZH
Sheath rank: 65℃ / 70℃ / 80℃
Sheath print: Accept customized
Sheath color: Grey,yellow,customized

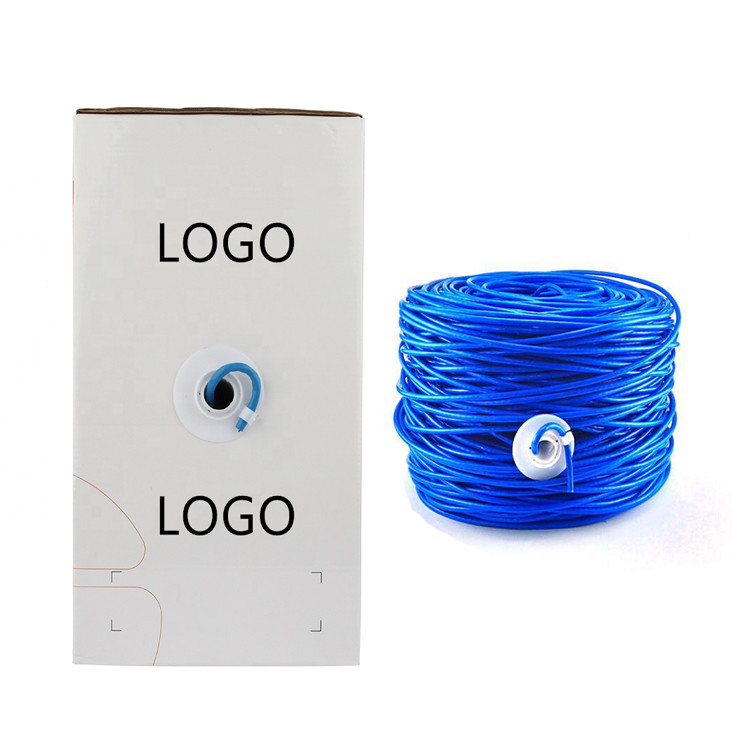

Package: 305m/pullout box
305m/wooden drum





Electrical Characteristics at 20℃




1-250MHz Impendance: 100±15Ω
Conductor DC resistance(Max): 9.5Ω/100m
Resistance Unbalance(Max): 2.50%
Spark test: 2000V
Insulation resistance(Min): 5000MΩ·km
Operating Capacitance(Max): 5.6nF/100m
Phase delay(Max): 555ns/100m
Delay Skew(Max): 45ns/100m


Transmission characteristics at  20℃





Frequency Return Loss Min Attenuation Max

NEXT

Min

PSNEXT

Min

ELFEXT

Min

PSELFEXT

Min

(MHz) (dB) (dB/100m) (dB/100m) (dB/100m) (dB/100m) (dB/100m)
1 20 1.84 74.3 72.3 68 65
4 23.01 3.69 65.27 63.27 55.96 52.96
10 25 5.89 59.3 57.3 48 45
16 25 7.51 56.24 54.24 43.92 40.92
20 25 8.43 54.78 52.78 41.98 39.98
31.25 23.64 10.64 51.88 49.88 38.1 35.1
62.5 21.54 15.36 47.36 45.36 32.08 29.08
100 20.11 19.78 44.3 42.3 28 25
200 18 28.97 39.78 37.78 21.98 18.98
250 17.32 32.84 38.33 36.33 20.04

17.04



Cat5e UTP FTP SFTP Cable
Conductor material CCA,BC Copper
Conductor diameter Solid one: 0.4mm, 0.45mm, 0.5mm
Stranded one: 24 AWG, 26 AWG, 28 AWG
Num of Conductor 2P, 4P, 8P, 10P, 25P, 50P, 100P, 200P ,,,,,
Insulation material PE , HDPE
Insulation diameter 0.9±0.02mm
Jacket material PVC, ROHS PVC, LSZH PVC

Cat6 /cat6a/cat7 UTP FTP SFTP Cable
Conductor material CCA,BC Copper
Conductor diameter Solid one: 0.5mm, 0.56mm, 0.57mm
Stranded one: 23AWG, 24 AWG
Num of Conductor



2P, 4P, 8P, 10P, 25P, 50P, 100P, 200P ,,,,,




Insulation material PE , HDPE
Insulation diameter 0.9±0.02mm
Jacket material PVC, ROHS PVC, LSZH PVC




Cat5e Cat6 Cat6a Cat7 HDPE Indoor Outdoor Ethernet LAN Cable Network Ethernet Lan CableCat5e Cat6 Cat6a Cat7 HDPE Indoor Outdoor Ethernet LAN Cable Network Ethernet Lan Cable
